There are 10 input channels available, including 5 microphone (MIC) inputs, 3 standard line hello (AUX) inputs, and 2 EMC emergency line inputs;

Emergency inputs (ENC1, 2) have a high priority forced entry function;

Secondly, microphone 1 (MIC1) is given priority as the second level, while microphones (MIC2, 3, 4, 5) and line (AUX1, 2, 3) inputs are given priority as the third level;

Both the microphone (MIC) input channel and the line (AUX) input channel can independently adjust the volume. There is no volume adjustment for emergency audio signal input, and it automatically silences to -30dB. It is equipped with independent adjustment for high frequency (TREBLE) and low frequency (BASS), and has one power input interface. The backup power interface can control 2200W device power.

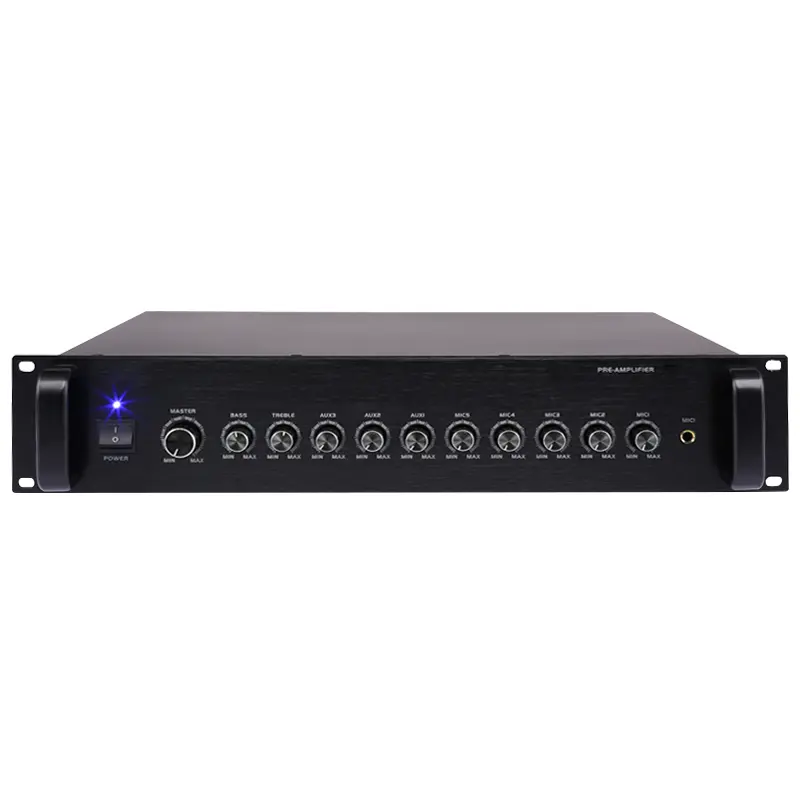

※ 2U standard chassis design, aluminum alloy panel, beautiful and practical.

The box size is 485 * 88 * 340mm, and the power consumption is 15W.
