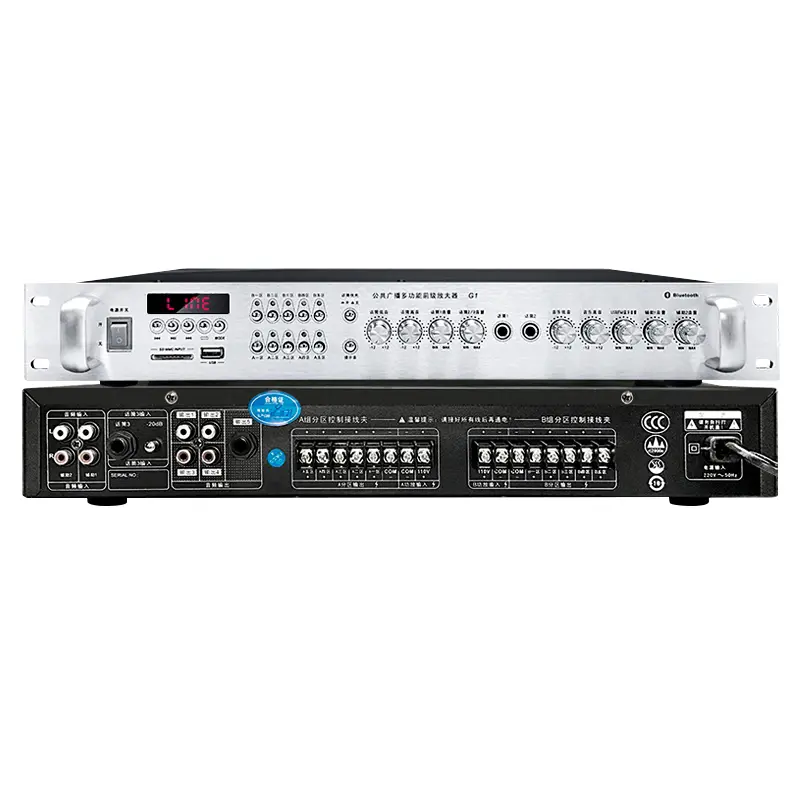

Standard chassis design, 2U aluminum alloy panel; Humanized hand pulling design, beautiful and practical; Equipped with 3.0 USB interface, 4.0 Bluetooth, 10 partition matrix

※ 6 inputs (2 microphones, 2 lines, 2 emergency inputs);

※ Each input channel has independent volume adjustment;

※ Equipped with independent adjustment for high (TREBLE) and low (BASS) tones;

Both the microphone (MIC) input channel and the line (AUX) input channel can independently adjust the volume. Emergency audio signal input without volume adjustment, automatic mute -30Db;

※ It has a three-level priority design, namely: MIC1 as high priority, emergency audio signals (MIC1, 2)

Technical parameters:

※ Tone adjustment range: Bass: ± 10dB at 100Hz

High pitch: ± 10dB at 10KHz

※ Microphone input: 600 ohms (Ω), 10Mv (-54dBV), unbalanced

※ Line input: 10K ohms (Ω), 250mV (-10dBV), unbalanced

※ Line output: 10K ohms (Ω), 1V (-10dBV), unbalanced

※ Frequency response: 60Hz-18KHz

※ Nonlinear distortion: THD<0.01% at 1KHz

Signal to noise ratio: microphone; 65dB line; 85 dB

※ Protection: AC FUSE (0.5) × 2

※ Power consumption: 10-15W

※ Power supply: AC 220-240V/50-60Hz

※ Equipment size: 485 × 390 × 90MM

※ Equipment weight: 7.0Kg
